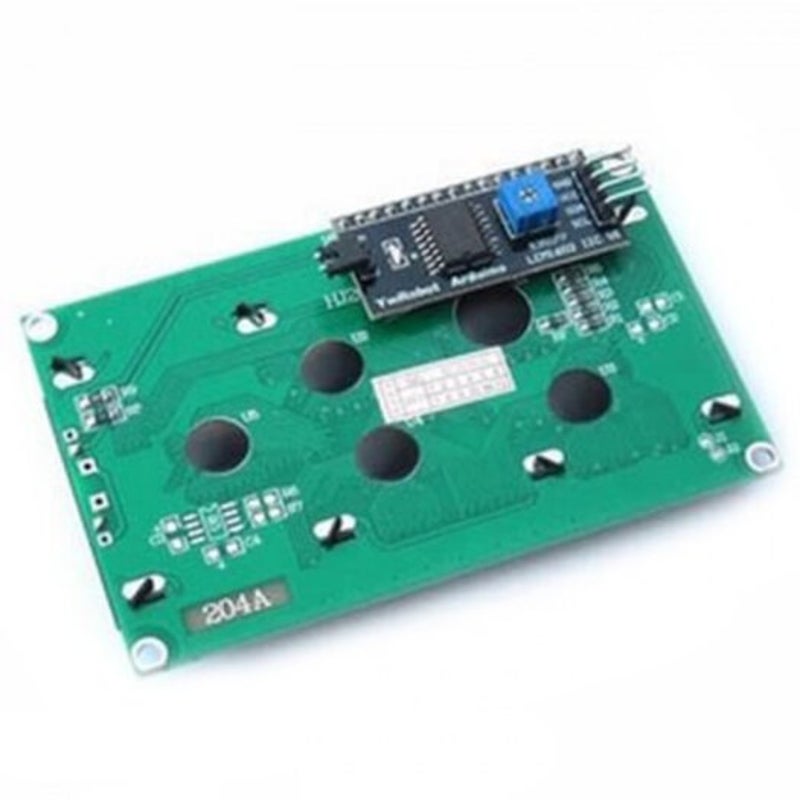

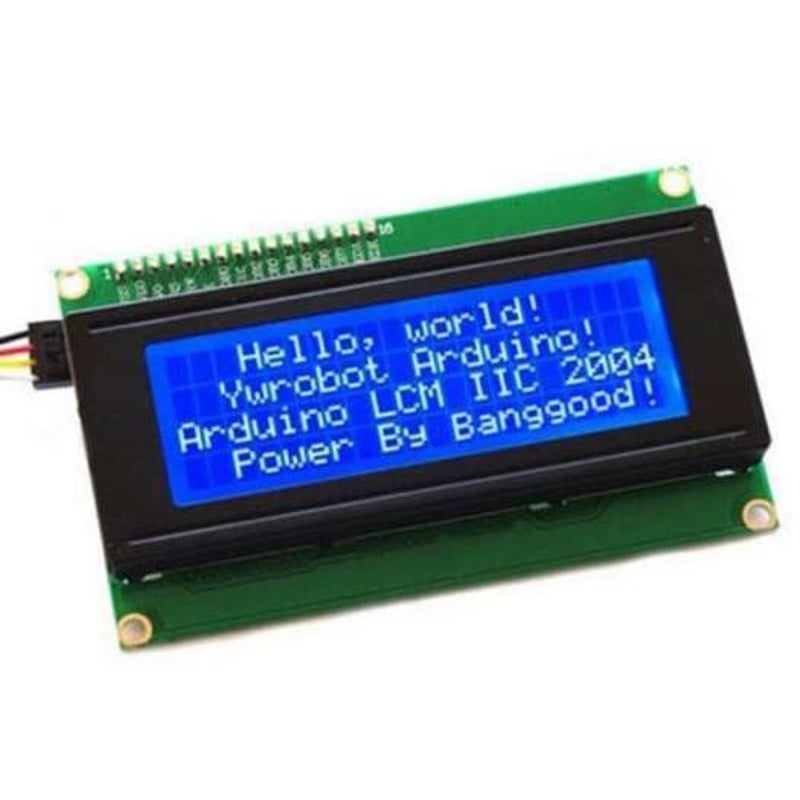

5V Iic / I2c Lcd2004 Character Display Module Blue Screen For Arduino Project Interface Dark Turquoise

1. The Iic 2004 Lcd Display Module Is A 4 Line 20 Character Lcd Module Not Only Set The Contrast Control Knob Selector Switch Also Has A Backlight And Iic Communication Interface. For Arduino Beginners Not For The Cumbersome And Complex Lcd Driver Circuit Connection And A Headache The Real Significance Of This Lcd Module Will Simplify The Circuit This Module Directly Into The For Arduino Sensor Shield V5.0 Sensor Expansion Board Iic Device Interface Can For Gm 4P Sensor Connection Cable Programmed Through The For Arduino Controller You Can Easily Identify The Slogan Sensor Data Records.
2. Supply Voltage: 5V
3. Interface: I2c
4. I2c Address: 0X27
5. Pin Definition: Gnd Vcc Sda Scl
6. Contrast Adjust: Potentiometer
7. The Module Is A Low-Power Consumption Character Lcd Module With A Built-In Controller
8. The Module Can Be Easily Connected With An Mcu
9. Display Format: 20 Characters X 4 Lines
10. Fully Assembled And Tested Serial Lcd 20 X 4 Module White Text Blue Backlight
11. It Is Fantastic For Arduino Based Project
12. Material: Fiber Components

Dimensions And Weight

Product Weight: 0.1100 Kg
Package Weight: 0.1200 Kg

You Will Receive

You Will Receive: 1 X Lcd Display Module
