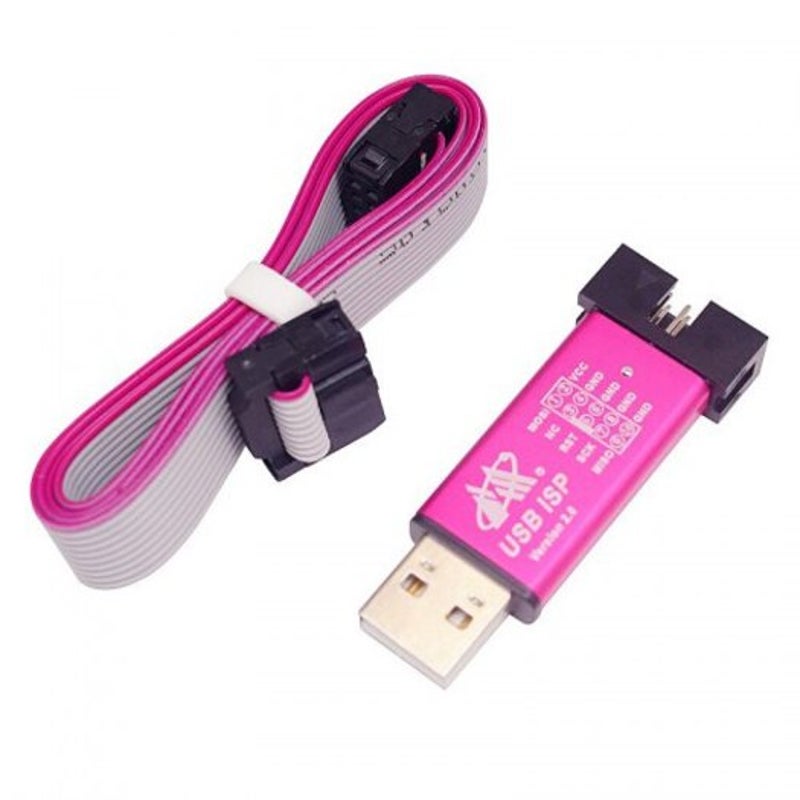

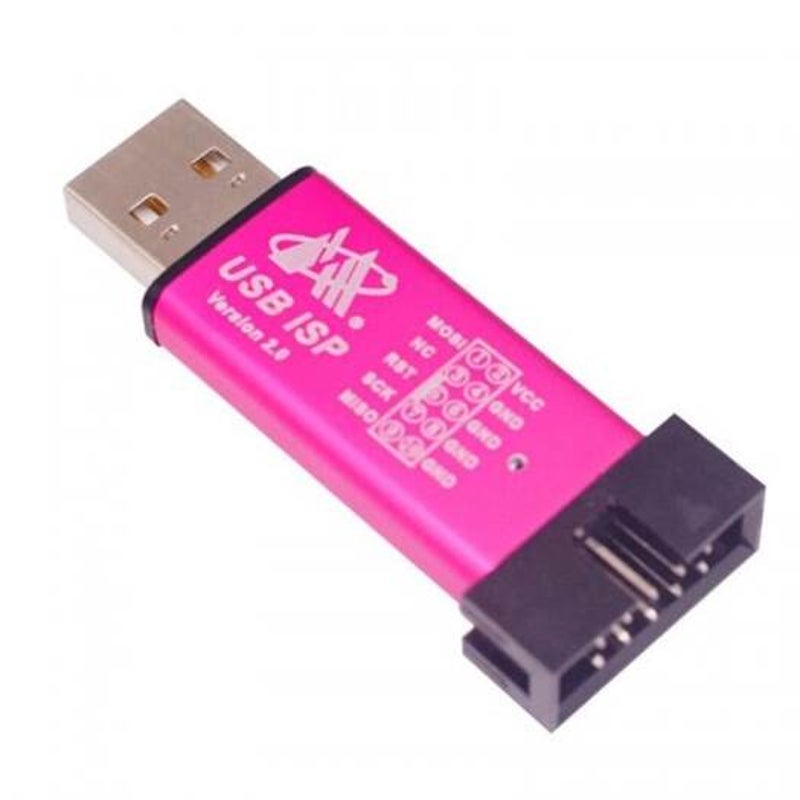

Official Isp Usbasp Programmer For 51 Atmel Avr Download Support Win 7 64 Random Color Multi

Features:

• No Need To Install The Driver. Plug In The Computer Usb Port You Will Be Prompted To Find The Engineering Input Device
• Perfect Support Win Xp Vista Win732 64-Bit And Other Operating Systems. Powered By Usb Port 500Ma Can Recover Fuses Short-Circuit Over-Current Protection And The Target Board Can Also Be Powered With Usb At The Same Time.
• The Download Completion Does Not Affect The Operation Of The Target Board.
• Support S51 And Avr Chip Burning The Speed Is Faster And More Stable Than The Parallel Port Isp; Is The Best Choice For Notebooks And Computers Without A Parallel Port. ( The 3.3V Version Cannot Support S51 Burning S51 Series 3.3V Cannot Be Downloaded ).
• Using The Latest Version Of Ultra-Stable Firmware Low-Speed Download Without Hardware Jumper Selection Download Speed Is Faster More Stable.
• Use The Standard Idc10 Interface.

Specifications:

• Interface Definition:
• At89s51 And S52 Series Pin And Download Line Corresponding Connection Definition:
• Miso -Gt; P1.5 Miso -Gt; P1.6 Sck -Gt; P1.7 / Res ordf; ordf;Gt; Rst Gnd ordf; ordf;Gt; Gnd 5V ordf; ordf;Gt;Vcc
• The Downloader Supports Programming Chips:
• 51 Series
• At89s51 At89s52
• Avr Series
• At90can128 At90can32 At90can64 At90pwm2 At90pwm3 At90s1200 At90s2313 At90s2323 At90s2343 At90s4414 At90s8515 At90s8535 At90usb1286 At90usb1287
• Atmega103 Atmega128 Atmega1280 Atmega1281 Atmega16 Atmega161 Atmega162 Atmega163 Atmega164 Atmega165 Atmega168 Atmega169 Atmega2560 Atmega2561
• Atmega32 Atmega323 Atmega324 Atmega325 Atmega3250 Atmega3259 Atmega329 Atmega3290 Atmega406 Atmega48 Atmega64 Atmega640 Atmega644 Atmega645
• Atmega6450 Atmega649 Atmega6490 Atmega8 Atmega8515 Atmega8535 Atmega88
• Attiny11 Attiny12 Attiny13 Attiny15 Attiny22 Attiny2313 Attiny24
• Attiny25 Attiny26 Attiny261 Attiny28 Attiny44 Attiny45 Attiny46
• Attiny461 Attiny84 Attiny85 Attiny861

You will receive:

• 1 x USBASP Programer
