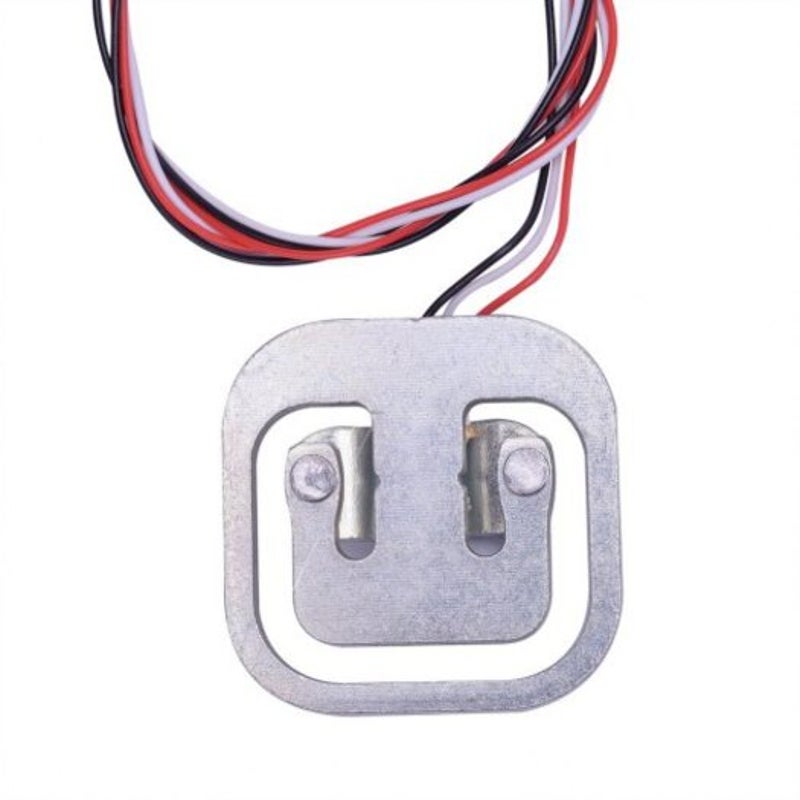

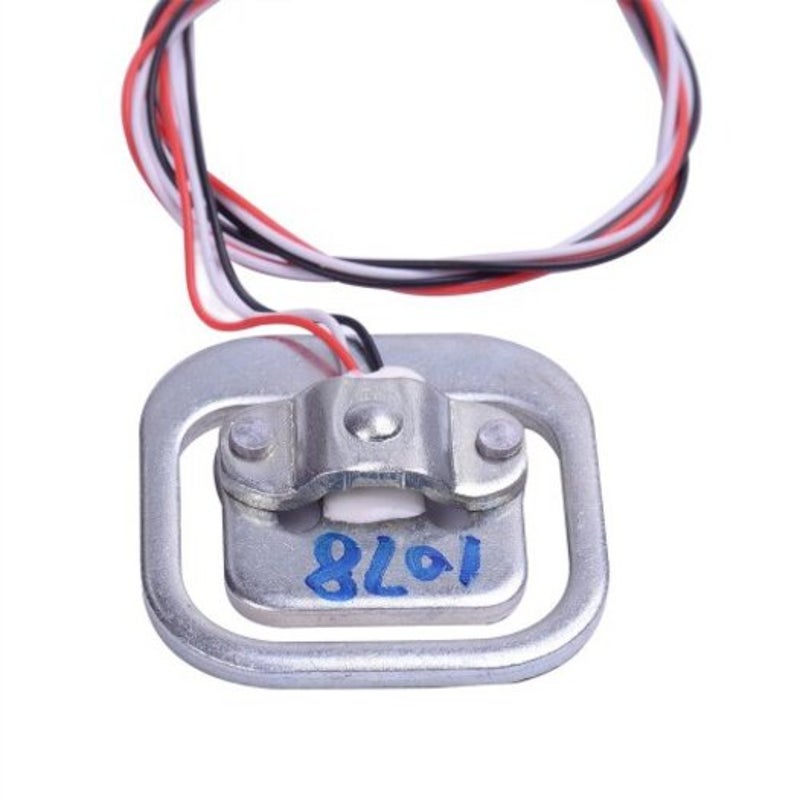

50Kg Load Cell Body Scale Weight Weighting Half Bridge Module For Arduino Silver

Features:

• This Item Is Used Widely In Hopper Scales Platform Scales Platform Balance Belt Scales And Other Electronic Weighing Devices.
• Internal 1000 Ohm half-bridge strain gauge load cell range is 50kg half-bridge structure.
• When measuring the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor(i.e. a strain gauge affixed to the middle with a beam of white plastic cover arm)and the outside edges to form a shear force in the opposite directioni.e. in the middle of strain beam bending necessary changes can occur under stress
  strain beam side by another force can not have a barrier.

Specifications:

• Dimension:3.4Aacute; 3.4Cm/ 1.33Aacute; 1.33Inches
• Structure:Half-Bridge
• Output Sensitivity:1.0Agrave;15%Mv/V
• Nonlinearity:0.05 % F.S
• Input Impedance: 1000Agrave;10ohm
• Output Impedance:1000Agrave;10ohm
• Insulation Resistance:R2000 M Ohm
• Product Weight: 0.0190 Kg
• Package Weight: 0.0400 Kg
• Product Size(L X W X H): 3.40 X 3.40 X 0.50 Cm / 1.34 X 1.34 X 0.2 Inches
• Package Size(L X W X H): 8.00 X 6.00 X 1.00 Cm / 3.15 X 2.36 X 0.39 Inches
• Capacity:50kg/110lb(each)

You will receive:

• 1x Sensor
